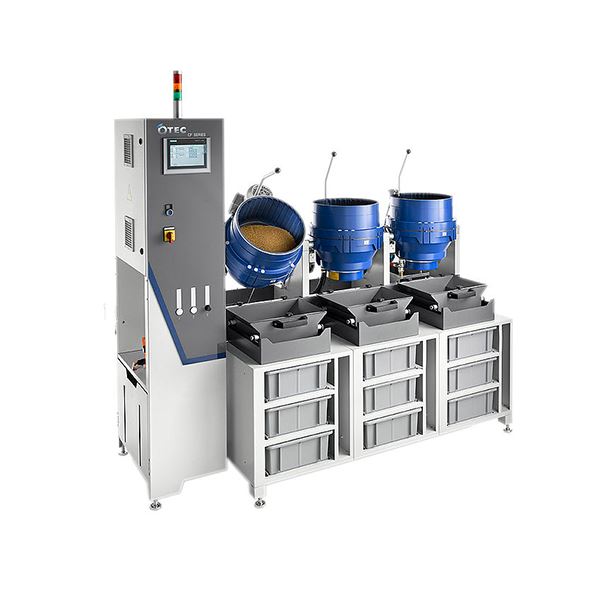

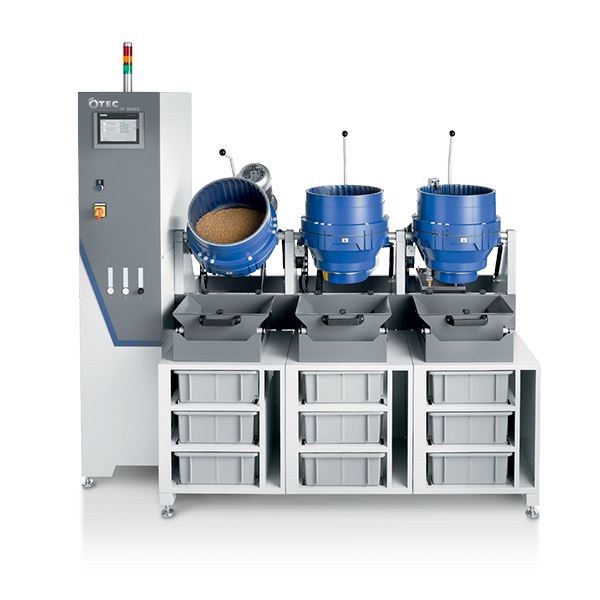

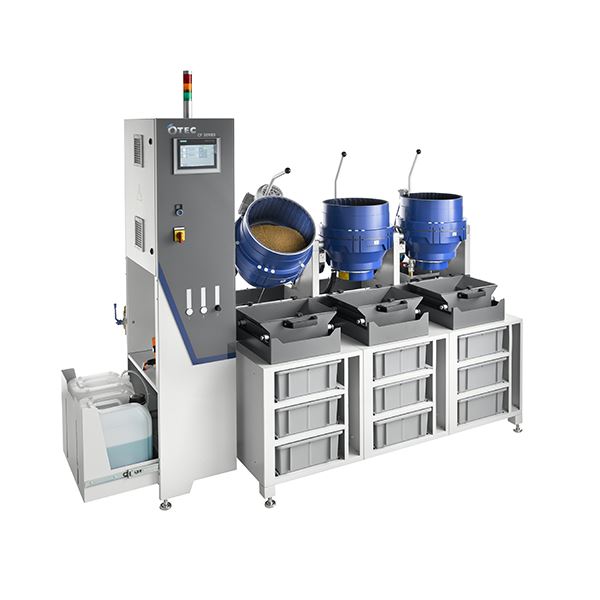

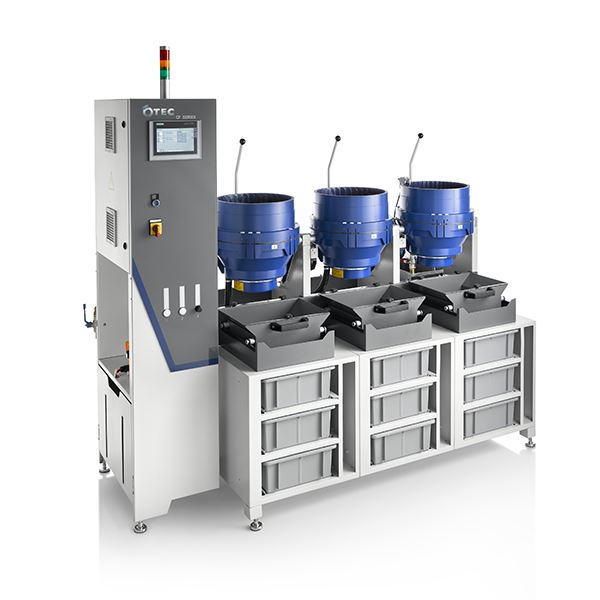

Disc-Finishing machine for three process containers volume: 18 liters)
Basic equipment:
- Thermally cross-linked, low-wear PU process container lining (profiled)
- Rotary disc-table with flow-optimized drive webs for delicate workpieces
- Inside diameter: 330 mm
- Complete water drain via stainless steel
hollow shaft for wet processing
- High-precision bearing assembly for the
rotary disc with corrosion-proof ceramic seal
system
- Drive motor 0,9 kVA with motor safety
switch
- machine frame in steel-construction
Control of the machining process by SPS with touch-screen with:
- display of processing time, speed compound dosing, timer function, process interruption and operating hours
- Start / stop keys for for program sequence
- Memory capacity for 500 processing programs
- Speed-control by frequency inverter
- Main switch / reset switch
- With signal-lights green/yellow/red
- With interface USB
